Aluminum Extrusion Material Specifications: From Alloy Selection To Final Finish

Understanding Aluminum Extrusion Material Specifications

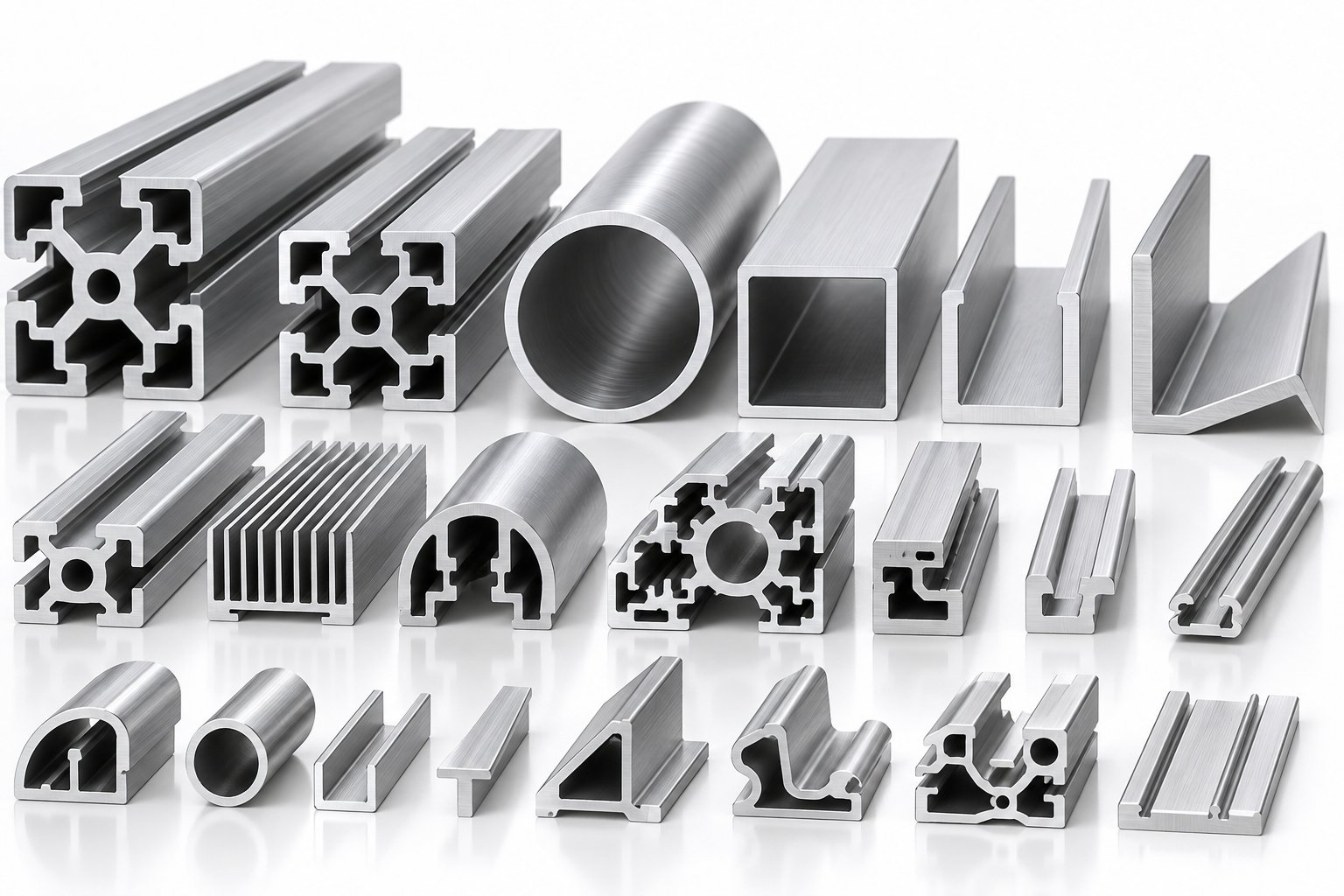

What is aluminum extrusion, and why do its specifications matter so much? When you're sourcing extruded aluminum profiles for engineering or manufacturing projects, the difference between success and costly failure often comes down to one thing: understanding the specifications that govern your material.

Aluminum extrusion material specifications represent the complete technical blueprint that defines every measurable characteristic of an extruded profile. These specifications encompass alloy composition, mechanical properties like tensile and yield strength, temper designations indicating heat treatment conditions, and dimensional tolerances that ensure proper fit and function. Together, they form the language engineers and procurement specialists use to communicate exact requirements to manufacturers.

Why Material Specifications Drive Project Success

Imagine ordering thousands of aluminum profiles for a structural application, only to discover they lack the strength your design requires. Or picture architectural extrusions arriving with surface qualities unsuitable for anodizing. These scenarios happen when specifications are overlooked or misunderstood.

To define extruded aluminum properly, you must consider it as a shaped product formed by forcing heated aluminum alloy through a die opening under immense pressure—typically ranging from 1,000 to 15,000 tons according to industry sources. The aluminium extrusion definition extends beyond the process itself to include the precise material characteristics that determine whether your finished product performs as intended.

Proper specification understanding prevents costly material selection errors that can derail projects, waste resources, and compromise structural integrity.

The Specification Ecosystem Explained

The world of aluminum specifications operates through interconnected standards. ASTM B221M serves as a crucial framework governing production and quality assurance, covering chemical composition, mechanical properties, heat treatment requirements, and dimensional tolerances as outlined by ASTM guidelines. Meanwhile, standards like ANSI H35.2M define permissible dimensional variations, ensuring components fit and function correctly in their intended applications.

What is extruded aluminum worth to your project if you can't verify its properties? This is precisely why understanding specifications matters. The tensile strength of pure aluminum sits around 90 MPa, but heat-treatable alloys can exceed 690 MPa according to materials research. Knowing which alloy-temper combination delivers your required performance is essential.

This guide bridges the gap between paywalled ASTM standards and practical application guidance. Whether you're an engineer selecting materials for aerospace components, a procurement specialist preparing RFQs, or a manufacturer optimizing production processes, you'll find actionable insights to make informed decisions about aluminum extrusion material specifications throughout this resource.

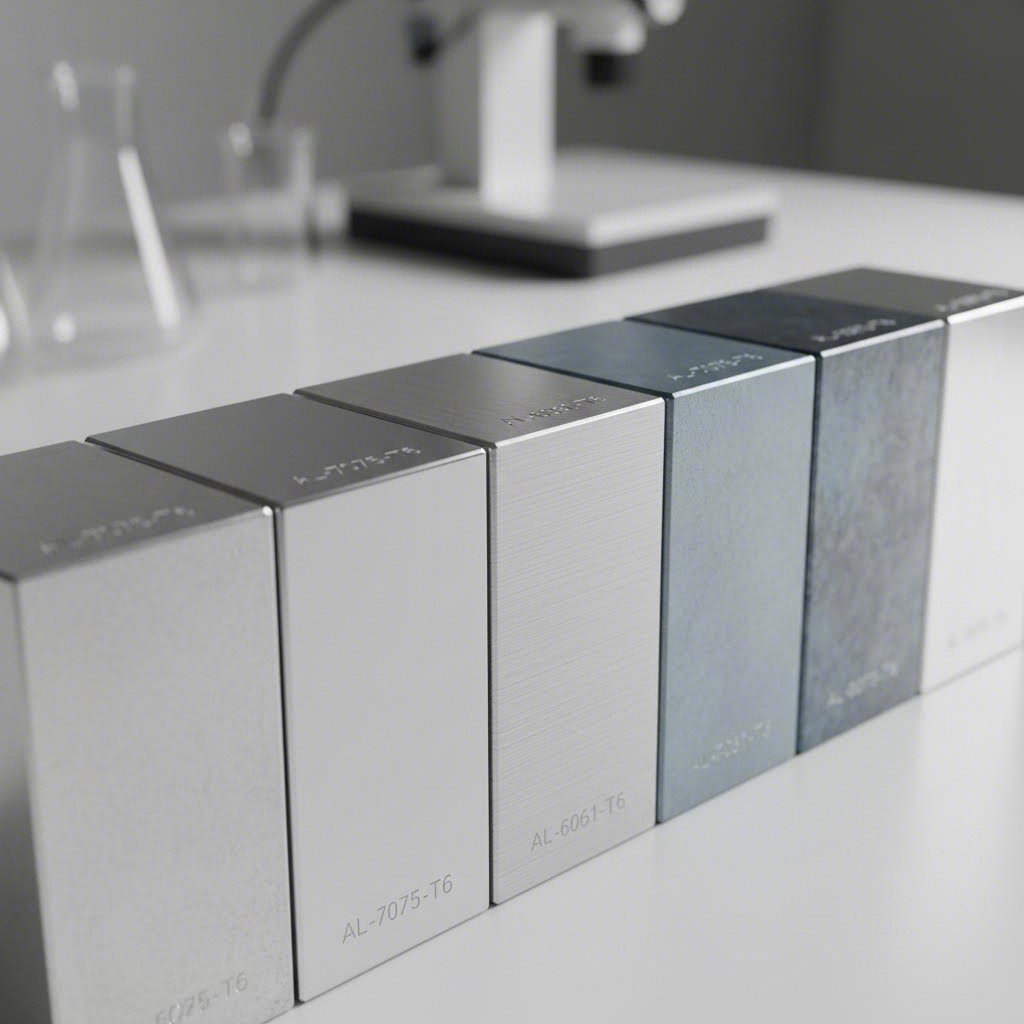

Common Aluminum Extrusion Alloys Compared

With specifications established as your project's foundation, the next critical decision involves selecting the right alloy. When comparing types of extruded aluminum, you'll encounter a range of options—each engineered for specific performance characteristics. But how do you choose between them?

The answer lies in understanding what each aluminum alloy extrusion brings to the table. From architectural facades requiring flawless finishes to aerospace components demanding exceptional strength, the alloy you select directly impacts mechanical performance, workability, and cost-effectiveness.

Note: Values represent typical properties at room temperature. Consult material specifications and supplier data sheets for design allowables. Data sourced from AmesWeb aluminum properties reference.

The 6000 Series Workhorses

When engineers discuss 6061 aluminum extrusion versus its siblings, they're comparing alloys that share a common foundation—magnesium and silicon as primary alloying elements—yet deliver distinctly different performance profiles.

The debate around 6063 aluminum vs 6061 often comes down to one question: Do you prioritize surface quality or structural strength? Here's what sets them apart:

• 6063 Alloy: Known as the "architectural alloy," it offers superior extrudability and produces exceptionally smooth surfaces ideal for anodizing. With tensile strength around 241 MPa in T6 temper, it handles moderate structural loads while delivering aesthetic excellence.
• 6061 Alloy: The structural workhorse delivers approximately 310 MPa tensile strength and 276 MPa yield strength in T6/T651 temper. It's your go-to choice when load-bearing capacity and weldability take priority over surface finish.
• 6005 Alloy: Positioned between 6063 and 6061, this alloy offers enhanced strength compared to 6063 while maintaining good extrudability. Rail car manufacturers and ladder producers frequently specify it.
• 6082 Alloy: Popular in European structural applications, 6082 provides strength comparable to 6061 with excellent corrosion resistance. It's commonly specified for bridges, cranes, and transport structures.

The aluminium fatigue strength of 6000-series alloys makes them suitable for applications involving cyclic loading. However, keep in mind that welding these alloys typically reduces strength in the heat-affected zone—a consideration we'll explore further when discussing application requirements.

When to Choose 7075 High-Strength Alloy

Sometimes, 6000-series alloys simply won't deliver the mechanical performance your application demands. That's when 7075 extrusion enters the conversation.

With zinc as its primary alloying element, 7075 aluminum extrusion achieves remarkable strength characteristics. According to materials reference data, 7075-T6 delivers yield strength of approximately 505 MPa and tensile strength reaching 572 MPa—nearly double the values of 6061-T6. This positions it among the strongest aluminum alloys available for extrusion.

However, this exceptional strength comes with trade-offs worth considering:

• Reduced corrosion resistance: Unlike 6000-series alloys, 7075 requires protective coatings or treatments in corrosive environments.
• Limited weldability: Conventional welding compromises 7075's properties significantly, making mechanical fastening or specialized welding techniques necessary.
• Higher cost: Both raw material and processing costs exceed those of 6000-series alternatives.
• Extrudability challenges: Complex profiles are more difficult to produce compared to 6063 or 6061.

When does 7075 make sense? Aerospace components, high-performance sporting equipment, and precision mechanical parts where the alumina tensile strength requirements exceed what 6000-series alloys can deliver. The elongation percentage of 11% for 7075-T6 indicates it maintains reasonable ductility despite its high strength.

Selecting between these alloys requires balancing mechanical requirements against fabrication considerations, surface finish needs, and budget constraints—factors that become clearer as we examine chemical composition in the next section.

Chemical Composition and Alloying Elements

Now that you understand how different alloys compare in mechanical performance, let's explore what actually creates those differences. The secret lies in chemical composition—the precise recipe of elements that transforms pure aluminum into specialized extruded aluminum alloy variants designed for specific applications.

Understanding aluminium classification through chemical composition helps you predict how a material will behave during fabrication and in service. Each alloying element plays a distinct role, and even small percentage changes can significantly alter extrudability, strength, corrosion resistance, and surface finishing quality.

Note: Values represent typical specification ranges per Aluminum Association standards. Actual mill certifications should be verified against project requirements.

How Alloying Elements Shape Performance

Ever wonder why 6063 aluminum alloy flows so smoothly through extrusion dies while 7075 presents challenges? The answer comes down to chemistry—specifically, how magnesium and silicon interact within the aluminum matrix.

In aluminium alloy extrusion, magnesium and silicon combine to form magnesium silicide (Mg2Si), a compound that enables precipitation hardening during heat treatment. According to materials science research, the stoichiometric ratio of magnesium to silicon at 1.73:1 represents the optimal balance for forming this strengthening compound. Here's how key elements influence your extrusion:

• Silicon: Improves extrudability and fluidity through the die. A silicon surplus—common in standardized alloys—accelerates precipitation during heat treatment and binds unwanted iron impurities. This is why 6063 extrudes so beautifully for architectural applications.
• Magnesium: The primary strength contributor in 6000-series alloys. Higher magnesium content increases tensile and yield strength but can reduce formability. Notice how 7075 contains significantly more magnesium (2.1-2.9%) compared to 6063 (0.45-0.9%).
• Copper: Adds strength through solid solution and precipitation effects—but there's a trade-off. Copper additions reduce corrosion resistance, which explains why 6061 (with 0.15-0.4% Cu) requires more attention to surface protection than copper-free 6063.
• Zinc: The star player in 7000-series aluminum extrusion alloys. At 5.1-6.1% in 7075, zinc enables precipitation hardening to strengths approaching steel—but significantly compromises corrosion resistance and weldability.
• Chromium and Manganese: These dispersion-forming elements control grain structure and improve stress corrosion cracking resistance. However, as noted in technical literature, alloys with higher chromium content become more sensitive to quenching rates during heat treatment.

The extrusion of aluminium alloys becomes more challenging as total alloying content increases. Pure aluminum extrudes easily, but the strengthening elements that make alloys useful also increase flow stress and reduce extrudability—explaining why complex architectural profiles favor 6063 while simpler, high-strength components might use 7075.

Reading Chemical Composition Certificates

When your extrusion shipment arrives, how do you verify you received the correct material? Mill test certificates—also called material test reports—provide the answer. These documents list the actual chemical analysis of your specific production lot.

Here's what to look for when reviewing composition certificates:

• All specified elements within range: Compare each element percentage against the alloy specification. Even one element outside the permitted range technically means the material doesn't meet the alloy designation.
• Silicon-to-magnesium ratio: For 6000-series alloys, verify this ratio supports proper Mg2Si formation. A significant imbalance can affect heat treatment response and final properties.
• Copper content for corrosion-sensitive applications: If your application involves marine environments or requires excellent anodizing, confirm copper remains at the low end of the specification range.
• Iron levels: While listed as a maximum impurity, lower iron content generally improves surface quality and anodizing response—particularly important for decorative 6063 applications.

Chemical composition directly connects to practical outcomes you'll care about. Lower copper content in 6063 produces cleaner anodized finishes with more consistent coloring. Higher magnesium in structural alloys delivers the strength your calculations require. And proper silicon levels ensure your supplier's dies produce profiles with the surface quality your project demands.

Understanding these chemical relationships prepares you to evaluate temper designations—the heat treatment conditions that unlock the full potential of your selected alloy chemistry.

Temper Designations and Heat Treatment Effects

You've selected your alloy and verified its chemical composition—but the material story doesn't end there. The same 6061 aluminum can behave completely differently depending on its temper designation. Sounds complex? It's actually a logical system once you understand what's happening at the metallurgical level.

Tempering aluminum involves controlled heating and cooling operations that transform the alloy's internal structure, directly affecting hardness of aluminum, strength, and workability. According to the ANSI H35.1(M) standard, the temper designation system applies to all forms of wrought and cast aluminum alloys, using letters and digits to communicate the exact thermal processing history. Understanding this system—particularly the T-temper codes—ensures you specify materials that meet your project's mechanical requirements.

Decoding the T-Temper System

When you see "6061-T6" on a material specification, that T6 suffix tells you precisely how the aluminum was heat treated. The T designation indicates solution heat treatment, and the following digits specify the exact sequence of thermal and mechanical operations performed.

According to MatWeb's reference guide, the T-temper system uses numerals 1 through 10 to indicate specific heat treatment sequences. Here's what the most common designations mean for your aluminum extrusion projects:

• T4 – Solution heat treated and naturally aged: The aluminum is heated to dissolve alloying elements into solid solution, quenched rapidly, then allowed to age at room temperature until properties stabilize. T4 offers moderate strength with excellent formability—ideal when you need to bend or shape extrusions before final use.
• T5 – Cooled from elevated temperature shaping and artificially aged: After extrusion, the profile is cooled and then artificially aged at controlled temperatures (typically 160-190°C). This temper is common for architectural extrusions where moderate strength and good surface finish are priorities.
• T6 – Solution heat treated and artificially aged: The aluminum undergoes complete solution treatment, rapid quenching, and controlled artificial aging to achieve maximum strength. For 6061-T6, this produces tensile strength around 290 MPa and Brinell hardness of approximately 95.
• T651 – Solution heat treated, stress relieved by stretching, and artificially aged: This temper adds a mechanical stretching step (typically 1.5-3% elongation) after quenching to relieve internal stresses before aging. The result? Nearly identical strength to T6 but significantly improved dimensional stability during machining.

The ANSI H35.2 standard further defines how these temper designations relate to dimensional tolerances and mechanical property requirements. When reviewing specifications, you'll notice that additional digits after the primary temper code—like the "51" in T651—indicate stress-relief treatments that dramatically affect how the material behaves during fabrication.

Matching Temper to Application Requirements

Here's where many specifications go wrong: engineers select tempers based solely on strength values without considering how the material will perform during manufacturing or in service. Let's explore why specific tempers are chosen for different applications.

When to choose T4:

• Your design requires significant forming, bending, or shaping after extrusion
• Parts will be aged to T6 condition after fabrication
• Maximum ductility is more important than immediate strength
• You're willing to perform secondary heat treatment operations

When to choose T5:

• Architectural applications where surface finish matters
• Moderate strength requirements without the cost of full solution treatment
• Standard building components like window frames and curtain walls
• Cost-sensitive projects where T6 properties aren't necessary

When to choose T6:

• Maximum strength is your primary requirement
• Parts are relatively simple geometries that won't distort during machining
• Load-bearing structural applications
• 6061 hardness values around 95 HB are needed for wear resistance

When to choose T651:

• Precision CNC machining with tight tolerances
• Large plates or blocks where stress-related distortion would be problematic
• Aerospace and defense components requiring dimensional stability
• Applications where minimizing post-machining warpage justifies the premium cost

According to machining industry research, T651 undergoes stretching that "significantly improves dimensional stability, making T651 preferred for applications requiring tight tolerances and consistent machining accuracy." This stress relief minimizes the warping that occurs when residual stresses release during material removal—a common problem with unstress-relieved T6.

The aluminum hardness you achieve depends directly on temper selection. T6 and T651 deliver similar hardness values (around 95 Brinell for 6061), while T4 and T5 produce softer material that machines differently. If your application involves sliding contact or wear resistance, specifying minimum hardness values alongside temper designation ensures consistent performance.

Tempering aluminum isn't just about achieving a number on a data sheet—it's about matching material behavior to your manufacturing process and end-use requirements. A precision aerospace bracket machined from T651 will hold tolerances that the same geometry in T6 might not, simply because the stress-relief stretching eliminated the internal tensions that cause distortion during cutting.

With temper designations clarified, you're ready to understand how hardness testing verifies that your material meets specification—and how different measurement scales relate to the properties you're designing around.

Hardness Specifications and Testing Standards

You've specified your alloy and temper—but how do you verify the material actually meets those requirements? Hardness testing provides the answer. It's one of the most practical quality control tools available, offering quick insights into whether your aluminum extrusion will perform as expected in service.

Hardness for aluminum isn't just a single number on a datasheet. The aluminium hardness you measure depends on which testing method you use, and understanding these methods helps you interpret supplier certifications, set appropriate acceptance criteria, and predict how your material will behave during machining and in final applications.

Hardness Testing Methods Explained

When evaluating hardness of al extrusions, three primary testing methods dominate industry practice: Rockwell, Brinell, and Vickers. Each approaches the measurement differently, and selecting the right method depends on your material, specimen size, and testing environment.

According to materials testing research, here's how each method works:

• Rockwell B Scale (HRB): This method applies a sequence of loads—first a minor load to seat the indenter, then a major load—and measures indentation depth rather than diameter. For aluminum extrusions, the Rockwell B scale uses a 1/16-inch steel ball indenter with a 100 kgf major load. The test is fast, provides direct readings without calculations, and requires minimal operator skill. For 6061-T6 aluminum, you'll typically see values around 60 HRB.
• Brinell Hardness (HB): A hardened steel or carbide ball (typically 10 mm diameter) is pressed into the surface under loads ranging from 500 to 3,000 kgf for 10-15 seconds. After load removal, the indentation diameter is measured microscopically. Brinell testing excels for aluminum alloys because the larger indentation averages out microstructural variations. The Aluminum Association typically specifies 95 HB for 6061-T6 using a 500 g load with a 10 mm ball.
• Vickers Hardness (HV): A diamond pyramid-shaped indenter creates a square impression under loads from 1 gf to 100 kgf. The diagonal lengths are measured to calculate hardness. Vickers testing offers exceptional precision across a wide hardness range and works well for thin extrusion walls or localized microhardness measurements. Expect approximately 107 HV for 6061-T6.

Why does Rockwell dominate production environments? Speed and simplicity. A Rockwell test takes seconds and displays results directly—no microscope measurements or calculations required. However, when you need to reference ASTM B221 PDF documentation or other specification standards, you'll often find Brinell values listed as the primary hardness requirement for aluminum extrusions.

Converting Between Hardness Scales

Imagine receiving a mill certificate showing Brinell hardness when your specification calls for Rockwell values. How do you verify compliance? Hardness scale conversion becomes essential.

According to ASTM E140 guidelines, approximate conversions exist between scales, though exact values vary with material composition and testing conditions. The following table shows typical hardness ranges for common aluminum alloy-temper combinations across multiple scales:

Note: Converted values are approximations based on ASM material data and standard conversion references. Always verify against actual test results for critical applications.

When interpreting these values, keep several practical considerations in mind:

• Conversion accuracy: Hardness conversions are empirical approximations—not exact equivalents. If your specification requires a specific scale, request testing in that scale rather than relying on converted values.
• Testing location matters: Hardness can vary across an extrusion's cross-section, particularly in thicker walls where cooling rates differ between surface and core.
• Surface preparation: Rough surfaces, scale, or coatings affect readings. Test surfaces should be clean and properly prepared according to ASTM standards.

Engineering Rationale Behind Hardness Specifications

Why specify hardness at all when you already have tensile strength requirements? Because hardness testing is fast, non-destructive (or minimally destructive), and correlates reliably with other mechanical properties.

For 6061-T6 aluminum, the relationship between hardness and strength is well established. At 95 HB, you can expect aluminum tensile strength psi values around 45,000 (310 MPa) and yield strength of approximately 40,000 psi (276 MPa) according to ASM data. This correlation means a quick hardness check on incoming material provides confidence that mechanical properties meet specification—without destroying samples in tensile testing.

When should you specify tighter hardness requirements? Consider these scenarios:

• Wear resistance applications: Components experiencing sliding contact or abrasion benefit from verified minimum hardness. Higher hardness of aluminum generally correlates with improved wear resistance.
• Machinability consistency: Machining parameters optimized for 95 HB material may produce poor results on 85 HB stock. Tighter hardness ranges ensure predictable cutting behavior.
• Surface finishing quality: Anodizing and mechanical finishing respond differently to hardness variations. Consistent aluminium hardness across production lots produces more uniform surface appearance.
• Critical structural applications: When minimum strength is essential for safety, specifying both minimum hardness and tensile testing provides redundant verification.

The tensile strength of alumina-reinforced composites behaves differently, but for standard aluminum extrusions, hardness testing remains one of the most efficient quality verification tools available. It bridges the gap between laboratory tensile testing and production floor reality, giving you confidence that your specified temper and mechanical properties are present in the material you receive.

Understanding hardness helps verify your material meets specifications—but dimensional tolerances determine whether your extrusions actually fit your application. Let's examine how industry standards govern the geometric accuracy of extruded profiles.

Dimensional Tolerances and Industry Standards

Your alloy is selected, temper verified, and hardness confirmed—but will the extrusion actually fit your assembly? Dimensional tolerances answer this critical question. They define the acceptable variation in aluminum extrusion dimensions that determines whether your profiles integrate seamlessly or create frustrating fit problems during installation.

Understanding aluminum extrusion tolerances isn't just about reading specification tables. It's about knowing when standard aluminum extrusion profiles meet your needs, when to request precision tolerances, and how those decisions affect both cost and project timelines.

Standard vs Precision Tolerance Classes

The Aluminum Extrusion Council references tolerance tables published by The Aluminum Association in their "Aluminum Standards & Data" publication. These tables—specifically Tables 11.5 through 11.14 and Tables 12.2 through 12.14—establish both industry standard and precision tolerance requirements that govern extruded aluminum sizes across the industry.

What's the practical difference between standard and precision classes? According to dimensional tolerance research, six primary tolerance categories define aluminum extrusion accuracy:

Note: Values represent typical ranges. Actual tolerances vary with profile complexity, wall thickness, and circumscribing circle diameter. Consult aluminum association standards for specific dimensional requirements.

ASTM B221 (imperial) and ASTM B221M (metric) serve as the foundational specifications for aluminum extrusion tolerances in North America. These standards work alongside aluminum association standards to define acceptable variations for:

• Wall thickness: Typically ±10% of nominal for standard tolerance, with tighter percentages available for precision work
• Cross-sectional dimensions: Dependent on circumscribing circle diameter and whether dimensions are across solid or hollow sections
• Length tolerance: Usually +6mm/-0mm for standard lengths, with tighter controls available on request
• Contour deviations: Measured against theoretical profile at specified inspection points

For aerospace and defense applications, specifications like AMS-QQ-A-200/3 (covering 6061 extrusions) and AMS-QQ-A-225/8 (covering 7075) impose additional requirements beyond commercial ASTM standards. These military and aerospace material specifications often mandate tighter dimensional controls, enhanced inspection protocols, and complete material traceability.

When Tighter Tolerances Are Worth the Cost

Here's the question every engineer and procurement specialist faces: Should you specify precision tolerances or accept standard grades? The answer depends on your application—and understanding when tighter aluminum extrusion tolerances genuinely add value versus when they simply add cost.

According to industry guidance, dimensional tolerances directly impact safety and functionality. Excessive deviations can cause misaligned components, compromised load-bearing capacity, and assembly failures. For example, an aluminum beam with uneven straightness may create uneven weight distribution, increasing structural failure risk.

When precision tolerances are justified:

• Mating surfaces requiring seals: Window frames, door systems, and enclosures where dimensional accuracy ensures weather-tight sealing
• Thermal management applications: Heat sinks where flatness tolerance affects thermal contact and heat transfer efficiency
• Mechanical assemblies: Components where aluminum extrusion sizes must interface precisely with machined parts or bearings
• Visible architectural elements: Standard aluminum extrusion profiles where shape deviations would compromise aesthetic appearance
• Automated assembly lines: High-volume production where dimensional consistency prevents costly line stoppages

When standard tolerances suffice:

• Non-critical structural members: Internal framing where fit tolerances are generous
• Secondary processing planned: Profiles destined for CNC machining that will correct dimensional variations
• Cost-sensitive applications: Projects where functional requirements are met by standard grades
• Hidden components: Internal parts where visual appearance doesn't matter

The cost implications of specifying tighter tolerances extend beyond the per-piece price. Precision extrusions often require slower production speeds, more frequent die maintenance, additional inspection steps, and higher rejection rates. These factors can add 15-30% to your component cost—sometimes more for complex profiles.

Before specifying precision tolerances, ask: Will this dimensional requirement genuinely improve my product's function, or am I over-engineering at unnecessary cost?

Many extruders can achieve tighter tolerances than published standard tables indicate, as noted by the Aluminum Extrusion Council. This makes tolerance requirements an important discussion topic between designer and extruder early in the project. A collaborative approach often identifies where tighter controls truly matter—and where standard tolerances provide adequate performance at lower cost.

For international projects, remember that B221 uses imperial units while B221M specifies metric values. Ensure your drawings and specifications clearly indicate which standard applies, preventing confusion that can lead to rejected material or costly rework. When working with global supply chains, metric specifications (B221M) often simplify communication with manufacturers outside North America.

With dimensional tolerances understood, you're equipped to match these geometric specifications to specific application requirements—where material selection, tolerance classes, and surface finish work together to meet your project's performance goals.

Application-Based Material Selection Guide

Now that you understand alloys, tempers, hardness, and tolerances—how do you put it all together? The most effective approach flips traditional specification thinking on its head: start with your application requirements, then work backward to the right material combination.

What are aluminum extrusions used for? The answer spans virtually every industry, from architectural facades to aerospace components. But each application brings unique demands for strength, corrosion resistance, surface finish, and fabrication characteristics. Understanding these aluminum extrusion applications helps you avoid the costly mistake of specifying materials based solely on familiar alloy numbers rather than actual performance needs.

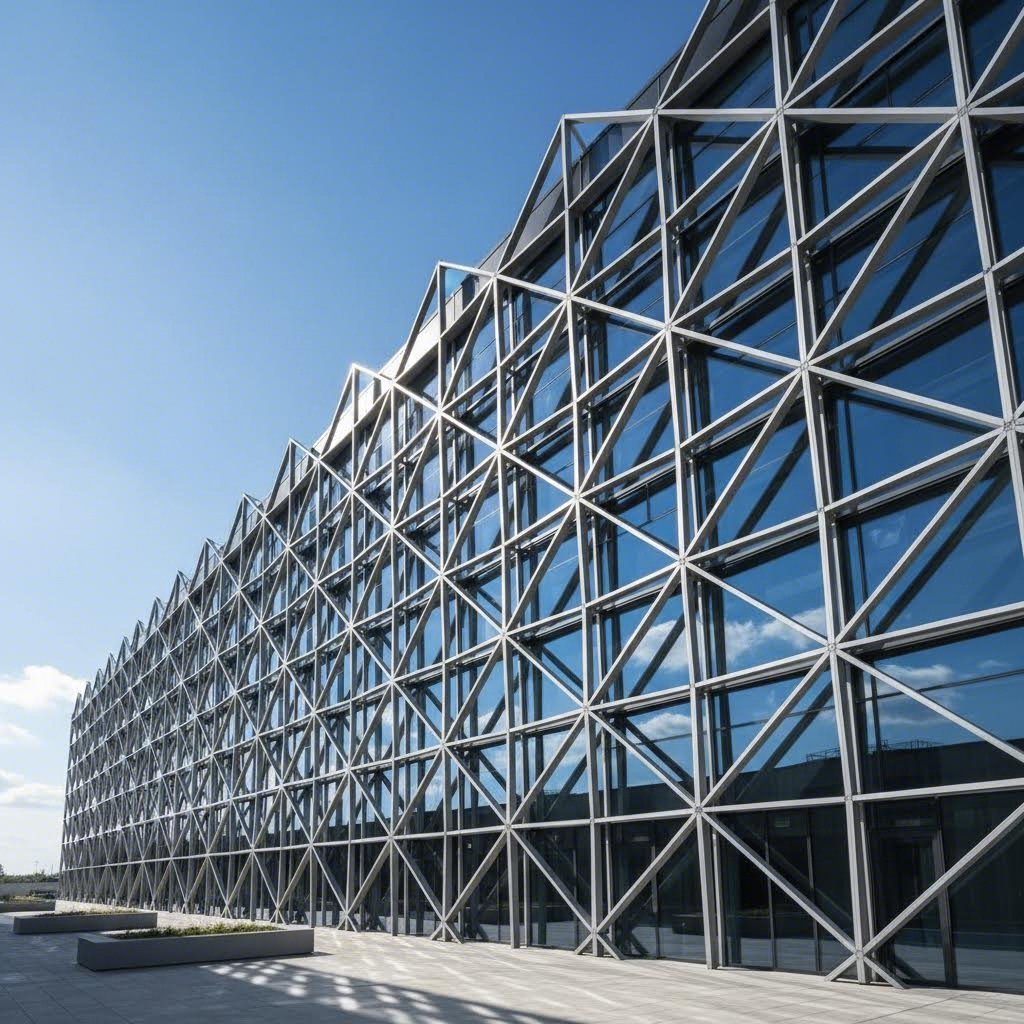

Architectural Applications and Surface Finish Priority

When building with aluminum extrusion for architectural projects, surface appearance often drives material selection more than mechanical properties. Think about it—curtain walls, window frames, and decorative trim are visible elements where surface quality matters as much as structural performance.

For architectural aluminum extrusions, consider these application-specific recommendations:

• Window and door frames: 6063-T5 remains the industry standard. Its excellent extrudability produces smooth surfaces that anodize beautifully, and the moderate T5 temper provides adequate strength for typical frame designs. According to industry guidance, 6063 offers both high surface quality and aesthetic moldability ideal for architectural projects.
• Curtain wall systems: 6063-T6 when higher strength is required, or 6061-T6 for larger structural mullions where load-bearing capacity takes priority over surface finish.
• Decorative trim and moldings: 6063-T5 with clear or color anodizing. The low copper content in 6063 produces consistent, uniform anodized colors without the mottled appearance that higher-copper alloys can exhibit.
• Exterior cladding panels: 6063 or 6005 with appropriate surface treatment. Consider powder coating or PVDF finishes for enhanced weather resistance and color options beyond anodizing.
• Railing systems: 6063-T6 for decorative residential railings; 6061-T6 for commercial applications requiring higher load ratings.

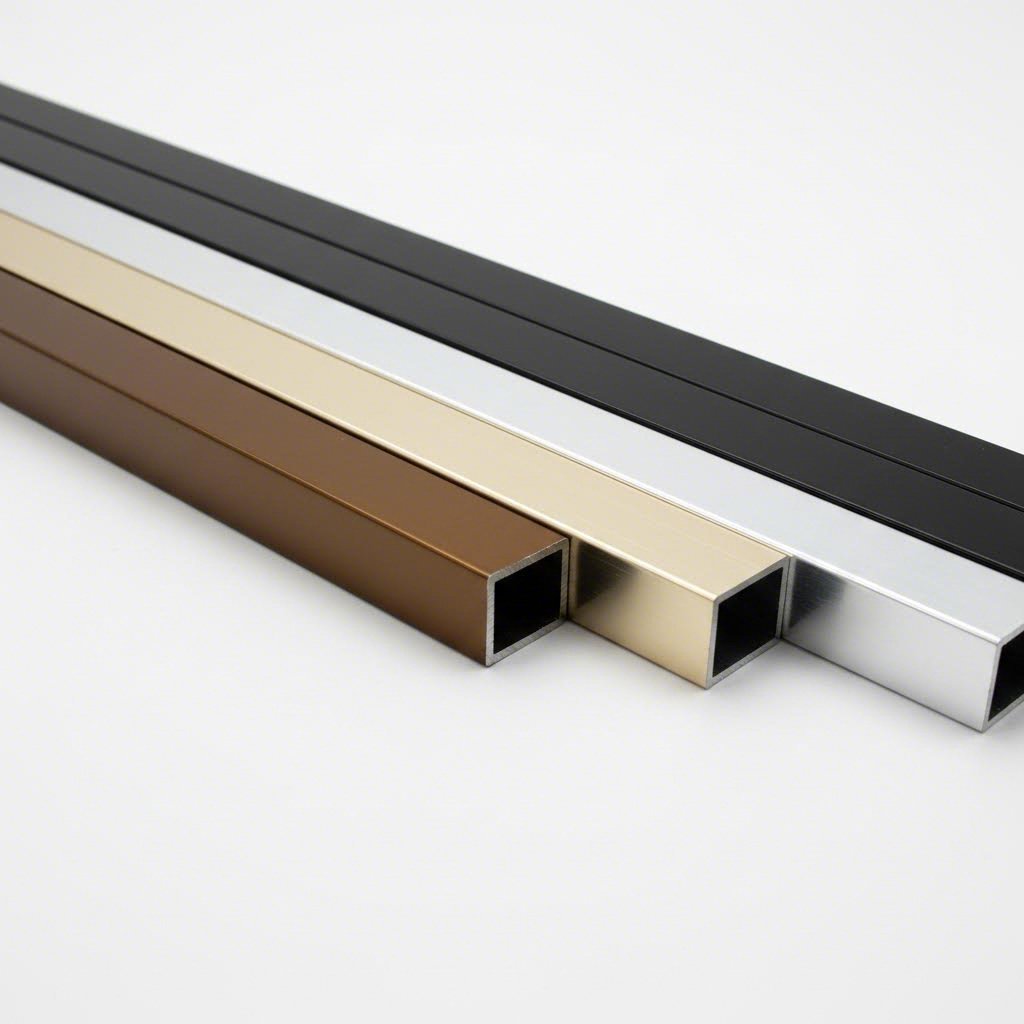

The anodizing response difference between 6063 and 6061 is significant. If your project requires a consistent, high-quality anodized finish—especially with color matching across multiple extrusion runs—6063's lower alloy content produces more predictable results. Save 6061 for applications where you'll paint, powder coat, or leave the mill finish hidden.

Structural and Load-Bearing Requirements

When strength becomes your primary concern, the material selection equation changes. Structural aluminium extrusions must meet calculated load requirements while considering factors like fatigue resistance, connection design, and fabrication methods.

For high-performance aluminum extrusions in industrial applications, match these alloys to your structural needs:

• General structural framing: 6061-T6 delivers the strength-to-cost balance most projects require. With 276 MPa yield strength and good weldability, it handles most structural applications effectively.
• Heavy-duty industrial structures: 6082-T6 offers comparable strength to 6061 with excellent corrosion resistance—popular in European structural applications including bridges and crane components.
• Modular framing systems: According to industrial application research, 6061-T6 alloys are ideal for machinery and automation lines where both high strength and ease of processing are required.
• Automotive structural components: 6061-T6 and 6082-T6 dominate this sector. Their combination of low weight, high durability, and good formability meets automotive industry requirements for fuel efficiency and crashworthiness.
• Aerospace-grade applications: 7075-T6 when ultimate strength justifies the cost and corrosion protection challenges. Its 505 MPa yield strength approaches steel territory while maintaining aluminum's weight advantage.

Structural extruded aluminum selection must account for connection methods—particularly welding. Here's a critical consideration many specifications overlook: TIG welding heat-treatable aluminum alloys like 6061-T6 reduces strength in the heat-affected zone by approximately 40 percent. This means a welded connection may be significantly weaker than the base material unless you account for this reduction in your design.

Any aluminum specifier or designer must account for the weakened state of welded members when designing connections for structural applications.

To address weld-related strength loss, consider these strategies:

• Increase profile wall thickness or section size near weld locations
• Use mechanical fasteners instead of welding for critical connections
• Design welds at locations of lower stress—typically further from maximum bending moment points
• Consider structural adhesives as alternatives or supplements to welding
• Specify post-weld heat treatment when feasible to recover some strength

Marine and Corrosive Environment Applications

Saltwater environments demand alloys with exceptional corrosion resistance—a requirement that eliminates some otherwise attractive options. When specifying aluminum for marine applications, copper content becomes a critical factor.

• Boat hulls and marine structures: 5052 and 5083 aluminum alloys offer superior saltwater corrosion resistance. According to marine application guidance, these alloys are ideal choices because surfaces exposed to saltwater tend to corrode over time with less resistant materials.
• Marine deck hardware: 6061-T6 with proper anodizing or coating protection. The copper content requires surface protection in marine environments.
• Offshore structures: 5000-series alloys for uncoated components; 6000-series with robust coating systems when higher strength is required.

For marine applications, avoid 7075 and other high-strength alloys with elevated copper and zinc content. Their stress corrosion cracking susceptibility in marine environments creates unacceptable risk despite their mechanical property advantages.

Renewable Energy and Solar Applications

Solar panel mounting systems represent one of the fastest-growing aluminum extrusion applications. These outdoor energy systems require profiles that balance strength, corrosion resistance, and cost-effectiveness over 25+ year service lives.

• Solar panel frames: According to industry sources, 6060 and 6005 aluminum alloys are ideal choices for solar panel frames—lightweight yet highly resistant to outdoor corrosion.
• Mounting rail systems: 6005-T5 offers enhanced strength compared to 6063 while maintaining good extrudability for complex rail profiles.
• Ground mount structures: 6061-T6 for larger structural members requiring higher load capacity.

Matching Selection Factors to Your Application

Beyond specific industry recommendations, several cross-cutting factors should influence your alloy selection:

• Weldability requirements: If your fabrication process involves significant welding, favor 6061 or 6063 over 7075. Remember the 30-40% strength reduction in heat-affected zones, and design accordingly.
• Anodizing quality: When appearance matters, 6063's superior anodizing response outweighs 6061's strength advantage. Copper content directly affects finish consistency.
• Corrosion environment: Marine and chemical environments require alloys with minimal copper content or robust protective coatings.
• Extrudability and cost: Complex profile geometries favor 6063; simpler shapes can utilize 6061 or stronger alloys cost-effectively.
• Post-extrusion processing: T4 temper when significant forming is required; T6 or T651 when maximum as-received strength is needed.

According to alloy selection guidance, no single aluminum extrusion alloy is perfect for all applications. Understanding the limitations of each alloy and determining if they align with your project requirements leads to better outcomes than defaulting to familiar specifications.

With your alloy selected based on application requirements, the next consideration involves surface finish specifications—where material choice, anodizing compatibility, and treatment options work together to achieve your desired final appearance and performance.

Surface Finish and Treatment Specifications

You've selected the right alloy for your mechanical requirements—but will it deliver the surface appearance your project demands? Surface finish specifications bridge the gap between raw extrusion and finished product, determining everything from aesthetic appeal to long-term durability.

When developing your aluminum extrusion design, surface treatment isn't an afterthought—it's a specification that can influence alloy selection from the start. Understanding this relationship helps you avoid costly surprises when profiles arrive at the finishing line.

Mill Finish vs Fabricated Surface Requirements

Every aluminum extrusion leaves the press with a "mill finish"—the as-extruded surface created by the die and cooling process. But what does that finish look like, and when is it acceptable for your application?

Mill finish surfaces exhibit characteristic extrusion lines running parallel to the profile length, along with minor variations in surface texture. For hidden structural components, this finish is often perfectly adequate. However, visible applications typically require additional treatment.

According to aluminum extrusion design guidelines, surface requirements fall into several categories:

• As-extruded mill finish: Acceptable for internal framing, industrial applications, and components receiving heavy fabrication
• Mechanically finished: Brushing, polishing, or blasting to create uniform texture before coating or anodizing
• Chemically treated: Etching processes that remove die lines and prepare surfaces for finishing
• Conversion coated: Chromate or non-chromate treatments providing corrosion protection and coating adhesion

The aluminium extrusion design guidelines from industry associations emphasize that surface preparation directly affects final finish quality. A profile destined for high-gloss anodizing requires different handling throughout the supply chain than one receiving industrial powder coating.

Anodizing Compatibility by Alloy

Here's where alloy selection and surface finish intersect most dramatically: anodizing response varies significantly between aluminum alloys. According to Aluminum Extrusion Council research, "the importance of knowing the temper of each piece of aluminum anodized" directly impacts quality outcomes including coating weight density and anodic oxide thickness.

Why does 6063 dominate architectural anodizing applications? The answer lies in chemistry. Lower alloying content—particularly copper—produces more uniform oxide layers with consistent coloring. When you specify 6061 for its higher strength, expect these anodizing differences:

• 6063 anodizing advantages: Cleaner, brighter appearance; more consistent color matching between production lots; superior response to electrolytic coloring processes; smoother final surface texture
• 6061 anodizing characteristics: Slightly grayer appearance in clear anodize; potential for mottled coloring due to copper content; acceptable for industrial applications where cosmetic uniformity is secondary
• 7075 anodizing challenges: High zinc content creates darker, less attractive finishes; generally unsuitable for decorative applications; typically painted or mechanically finished instead

For aluminium extruded tubes and profiles requiring color anodizing, 6063 remains the specification of choice. According to industry finish specifications, architectural anodizing follows AAMA 611 standards with Class I (thicker coating for exterior use) and Class II options available in colors ranging from clear through bronze tones to black.

Surface Treatment Options and Specifications

Beyond anodizing, aluminum extrusions accept a range of surface treatments—each with specific specification requirements:

• Anodizing (clear and color): Specified per AAMA 611; Class I provides 0.7 mil minimum thickness for exterior applications; electrolytic two-step coloring offers light-resistant bronze, champagne, and black tones
• Powder coating: AAMA 2604 standard for high-performance architectural coatings; polyester TGIC formulations offer excellent durability with broad color selection
• PVDF/Kynar coatings: AAMA 2605 specification for premium exterior durability; 70% polyvinylidene fluoride content provides exceptional weathering resistance and color retention over 20+ years
• Micro-arc oxidation: Creates ceramic-like oxide layers with exceptional hardness and wear resistance for demanding industrial applications
• Mechanical finishes: Brushed, polished, or blasted textures specified by grit size and direction relative to extrusion length

According to specification guidelines, painted finishes meeting AAMA 2605 requirements undergo cleaning, conversion coating for adhesion, primer application, and thermo-cured topcoat application—a multi-step process requiring specialized equipment and quality controls.

Selecting Manufacturers with Comprehensive Finish Capabilities

When surface finish specifications are critical to your project, partnering with manufacturers offering integrated finishing capabilities streamlines your supply chain. Rather than coordinating between extruders and separate finishing houses, full-service providers handle everything from die development through final surface treatment.

Look for manufacturers offering:

• Anodizing in standard and custom colors including champagne, rose gold, and architectural bronzes
• Powder coating with broad color matching capabilities
• PVDF coating for premium exterior durability requirements
• Micro-arc oxidation for specialty industrial applications
• Integrated quality control ensuring finish consistency across production runs

Shengxin Aluminium's surface treatment capabilities exemplify this full-service approach, offering the complete range of finishing options alongside 35 extrusion presses and CNC machining centers. This integration ensures aluminum tube extrusion and complex profiles receive consistent quality from raw material through finished product.

With surface finish specifications established, you're ready to consolidate all these material considerations into actionable procurement guidance—turning your specification knowledge into successful project outcomes.

Putting Specifications Into Practice

You've explored alloys, tempers, tolerances, and finishes—but how do you translate this knowledge into a successful procurement process? The gap between understanding specifications and applying them correctly is where many projects stumble. Let's bridge that gap with actionable guidance you can use immediately.

Understanding how aluminum extrusion is made helps you appreciate why clear specifications matter. The extrusion aluminium process involves forcing heated billets through precision dies under tremendous pressure, with every variable—from alloy chemistry to cooling rates—affecting your final aluminium extrusion parts. When you specify materials correctly from the start, you avoid costly revisions, rejected shipments, and project delays.

Specification Checklist for RFQ Development

Before submitting your next request for quotation, work through this prioritized checklist. According to industry best practices, providing complete information upfront streamlines quoting and ensures you receive accurate pricing for your actual requirements.

1. Alloy designation: Specify the complete alloy number (6063, 6061, 7075, etc.) based on your mechanical and surface finish requirements. Don't assume suppliers will select the appropriate alloy for your application.
2. Temper condition: Include the full temper designation (T5, T6, T651) matching your strength, formability, and dimensional stability needs. Remember that T651 costs more but delivers superior machining stability.
3. Dimensional tolerances: Indicate whether standard or precision tolerances are required. Reference specific standards (ASTM B221, B221M) and identify critical dimensions requiring tighter controls.
4. Surface finish requirements: Specify mill finish acceptance criteria or required treatments (anodizing class, powder coating specification, PVDF). Note if profiles will receive secondary finishing that affects alloy selection.
5. Length requirements: Provide finished lengths and acceptable tolerances. Standard aluminum extrusions typically extrude in 3.0-6.5 meter lengths—shorter pieces require additional cutting operations.
6. Quantity and usage pattern: Share anticipated volumes and whether requirements are one-time or ongoing. This affects manufacturing route recommendations and potential stockholding arrangements.
7. Drawing and design files: Submit complete CAD files with all dimensions, tolerances, and critical features clearly noted. Include section views for complex hollow profiles.
8. Testing and certification requirements: Specify required mill test reports, material certifications, or third-party testing for critical applications.
9. Packaging specifications: Note special requirements for pack dimensions, piece counts, or protective packaging—particularly important for finished surfaces.

Avoiding Common Specification Errors

Even experienced engineers make specification mistakes that create problems downstream. According to aluminum extrusion design research, several common errors appear repeatedly when manufacturers receive new profile designs.

Here's what to watch for—and how to avoid these pitfalls:

• Over-specifying tolerances: Requesting precision tolerances everywhere—when only specific features require tight control—increases costs by 15-30% without functional benefit. Identify which dimensions truly affect fit and function.
• Ignoring alloy-finish compatibility: Specifying 6061 for decorative anodized applications, then being disappointed by inconsistent color. Match your alloy to your finish requirements from the start.
• Forgetting weld strength reduction: Designing welded assemblies using base material strength values. Account for the 30-40% strength reduction in heat-affected zones, or specify mechanical fastening instead.
• Incomplete tolerance notation: Failing to specify whether tolerances are unilateral or bilateral, or which datum features control other dimensions. Ambiguous tolerances create inspection disputes.
• Lack of product requirements documentation: Submitting drawings without explaining the application, environment, or critical performance factors. Suppliers make better recommendations when they understand your actual needs.
• Assuming standard means available: Expecting immediate delivery of standard aluminum extrusion profiles that actually require die production. Verify stock availability versus production lead times.

Clear specifications prevent costly material selection errors—but they require collaborative dialogue between designer and extruder, not just completed paperwork.

Partnering with Experienced Extrusion Suppliers

The aluminum extrusion process involves far more than pushing metal through a die. According to supplier collaboration research, successful projects depend on establishing solid partnerships with suppliers who understand your requirements and offer genuine technical support.

What should you look for in an extrusion partner?

• Technical collaboration capability: Suppliers who engage early in the design process can optimize profiles for manufacturability, cost-effectiveness, and performance. Their insights often improve functionality while reducing production challenges.
• Comprehensive equipment range: Multiple press sizes (from 600T to 5500T capacity) enable production of profiles ranging from delicate architectural trim to heavy structural sections—all from a single source.
• Integrated secondary processing: CNC machining, cutting, drilling, and bending capabilities that transform aluminum extrusion parts into finished components reduce your supply chain complexity.
• Full surface treatment options: In-house anodizing, powder coating, PVDF, and specialty finishes ensure consistent quality from extrusion through final appearance.
• Responsive technical support: Ongoing assistance from die development through mass production, including help addressing challenges that emerge during manufacturing.

Shengxin Aluminium exemplifies this technical partnership approach with over 30 years of industry experience. Their facility houses 35 extrusion presses and state-of-the-art CNC machining centers, providing end-to-end support from die development through finished aluminium extrusion parts. Whether you need custom 6063 architectural profiles or complex industrial components, partnering with experienced suppliers transforms specifications from paperwork into successful products.

Your aluminum extrusion specifications represent more than technical requirements—they're the communication bridge between your design intent and manufactured reality. Master these specifications, partner with capable suppliers, and your projects will deliver the performance your applications demand.

Frequently Asked Questions About Aluminum Extrusion Specifications

1. What is the ASTM standard for aluminum extrusions?

ASTM B221 (imperial) and ASTM B221M (metric) are the foundational specifications for aluminum extrusions in North America. These standards cover chemical composition, mechanical properties, heat treatment requirements, and dimensional tolerances. For aerospace applications, additional specifications like AMS-QQ-A-200/3 for 6061 and AMS-QQ-A-225/8 for 7075 impose stricter requirements including enhanced inspection protocols and material traceability.

2. What grade of aluminum is used for extrusion?

The most common aluminum grades for extrusion are from the 6000 series, particularly 6063 and 6061. 6063 is the architectural alloy offering superior surface finish and anodizing response, while 6061 provides higher structural strength for load-bearing applications. For aerospace-grade requirements demanding exceptional strength, 7075 aluminum with zinc as its primary alloying element achieves yield strengths approaching 505 MPa.

3. Is 6061-T6 aluminum extruded?

Yes, 6061-T6 is widely extruded and serves as the structural workhorse in aluminum extrusion applications. The T6 temper indicates the material has been solution heat treated and artificially aged to achieve maximum strength—approximately 310 MPa tensile strength and 276 MPa yield strength. Its excellent extrudability makes it suitable for automotive, structural, and industrial applications where strength takes priority over surface finish.

4. How do I choose between 6063 and 6061 aluminum extrusions?

The choice depends on whether you prioritize surface quality or structural strength. Choose 6063 for architectural applications requiring flawless anodized finishes and moderate strength. Select 6061 when load-bearing capacity and weldability are primary concerns. Keep in mind that 6063's lower copper content produces more consistent anodizing colors, while 6061's higher strength comes with slightly grayer anodized appearance.

5. What happens to aluminum strength when welded?

TIG welding heat-treatable aluminum alloys like 6061-T6 reduces strength in the heat-affected zone by approximately 30-40%. This significant reduction must be factored into structural design calculations. To address this, engineers can increase profile thickness near weld locations, use mechanical fasteners instead of welding, position welds at lower-stress areas, or specify post-weld heat treatment to recover some strength.
